HARDWARE FEATURES

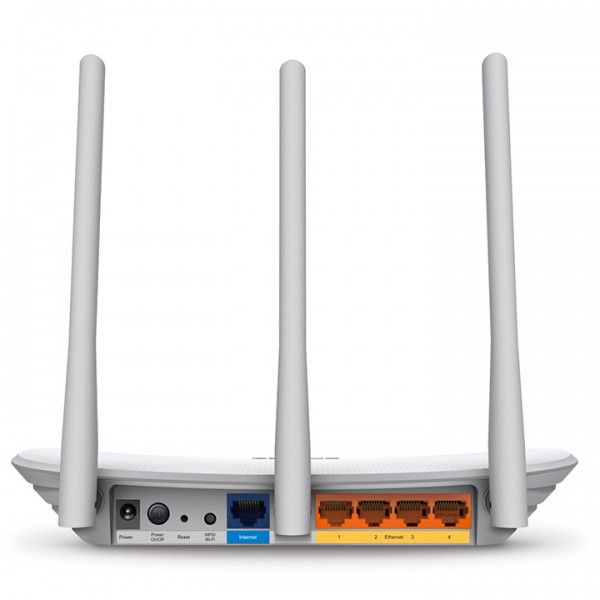

Interface 4 10/100Mbps LAN PORTS
1 10/100Mbps WAN PORT
Button Reset Button
Wi-Fi/WPS Button
Power On/Off Button

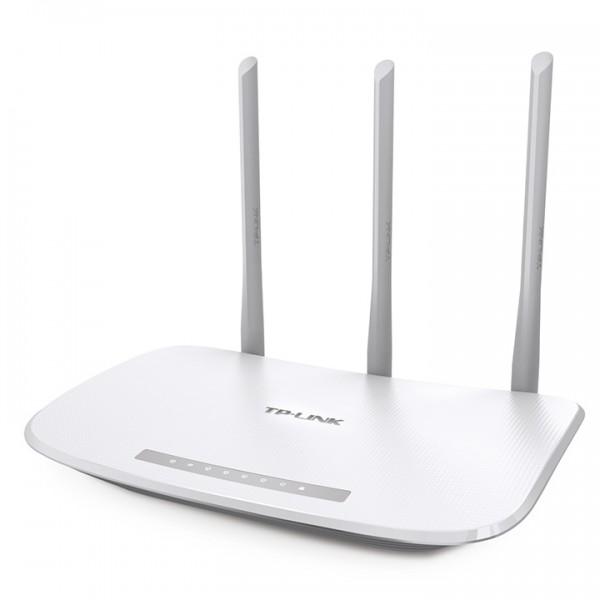

Antenna 3*5dBi Fixed Omni Directional Antenna
External Power Supply 9VDC / 0.6A
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions ( W x D x H ) 9.1 x 5.7 x 1.4 in.(230 x 144 x 35 mm)

WIRELESS FEATURES
Frequency 2.4-2.4835GHz
Signal Rate 11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity 270M: -70dBm@10% PER
130M: -74dBm@10% PER
108M: -74dBm@10% PER
54M: -77dBm@10% PER
11M: -87dBm@8% PER
6M: -90dBm@10% PER
1M: -98dBm@8% PER
Transmit Power CE:
<20dBm
FCC:
<30dBm
Wireless Functions Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security 64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK

SOFTWARE FEATURES
Quality of Service WMM, Bandwidth Control
WAN Type Dynamic IP/Static IP/PPPoE/
PPTP/L2TP/BigPond
Management Access Control
Local Management
Remote Management
DHCP Server, Client, DHCP Client List,
Address Reservation
Port Forwarding Virtual Server,Port Triggering, UPnP, DMZ
Dynamic DNS DynDns, Comexe, NO-IP
VPN Pass-Through PPTP, L2TP, IPSec (ESP Head)
Access Control Parental Control, Local Management Control, Host List,
Access Schedule, Rule Management
Firewall Security DoS, SPI Firewall
IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding
Protocols Support IPv4 and IPv6
Guest Network 2.4GHz Guest Network x1

OTHERS
Certification CE, FCC, RoHS
Package Contents Wireless N Rotuer TL-WR845N
Power supply unit
Ethernet Cable
Quick Installation Guide
System Requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7,
Windows8/ 8.1/10
MAC® OS, NetWare®, UNIX® or Linux
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
